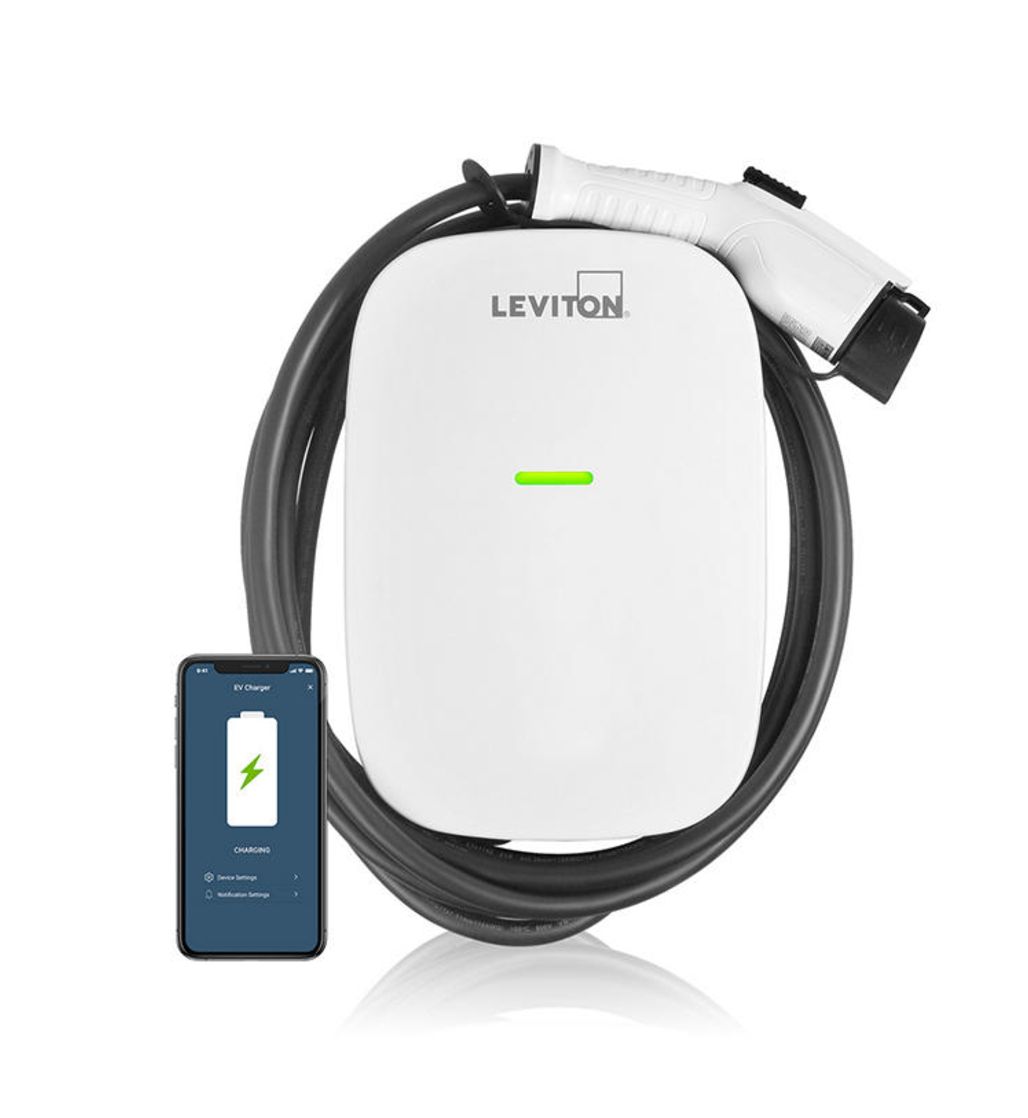

The EV32W is a high-quality Level 2 Electric Vehicle Charging Station designed for efficient and convenient charging of electric vehicles. With a charging capacity of 32 Amps and support for 208/240 VAC power input, it offers a powerful 7.6kW output, ensuring fast charging times for your electric vehicle. Equipped with a J1772 charge connector and an 18-foot cord, this charging station provides flexibility and ease of use. It includes a mounting bracket and a pre-attached input cable for easy installation. The EV32W also offers optional RFID control for added security. With its Wi-Fi compatibility (Wi-Fi Function 802.11 b/g/n), it can be conveniently controlled and monitored using the My Leviton App. This charging station serves as a reliable and feature-rich replacement for the EVR30-B1C and EVR30-R2C models, providing an enhanced charging experience for electric vehicle owners.

This WiFi-enabled EV Charger works with my Leviton app so you can see the charging status from anywhere. For more information visit: https://www.leviton.com/en/products/my-leviton-app

Leviton EV32W 32 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Features:

• SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
• THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
• FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
• EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 40-amp breaker
• CHARGE ANY ELECTRIC VEHICLE – with an industry-standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter

Leviton EV32W 32 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Specifications:

Electrical Specifications:

• Amperage: 32 A
• Breaker: 40 A
• Charge Connector Cord: #7 AWG SAE J1772
• Number of Phase / Wire: L1, L2, and Ground, Bottom Feed
• Operating Temperature: -30°C to 50°C
• Output Power: 7.6 kW
• Short Circuit Current Rating: 20 mA CCID per UL 2231
• Voltage: 208/240 VAC

Environmental Specifications:

• Altitude: Up to 6,500 ft. (2,000 m)
• Charging Cable Operating Temperature: -22°F to +122°F (-30°C to +50°C)
• Cooling: Natural Cooling
• Operating Humidity: < 95% Relative Humidity, Non-Condensing

Material Specifications:

• Enclosure Material: Plastic (PC+PBT)
• Enclosure Rating: NEMA Type 3R
• Status Indicator: Power Present, Charging, Fault

Mechanical Specifications:

• Cable Length: 18 ft. (5.5 m)

Product Features:

• Application: Home, Commercial
• Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
• Device Type: Charger
• Feature: My Leviton Enabled

Standards and Certifications:

• Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant

Warranty:

• Warranty: 2-Year Limited
